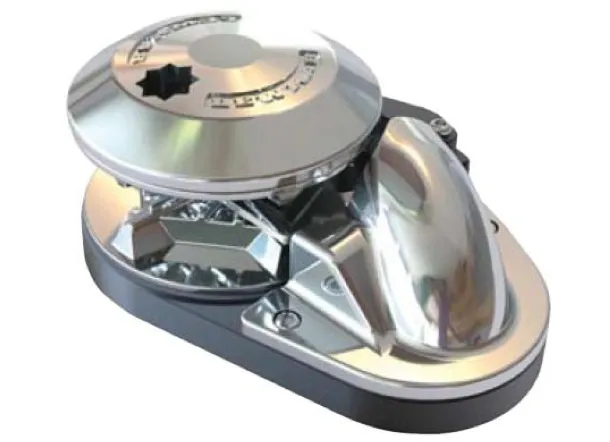

The CPX vertical lightweight windlass range compliments the current V Range.
These windlasses feature the tried and tested worm-wheel gearbox architecture and use quality materials throughout - hard anodised aluminium for the base and cast stainless steel for the gypsy top cap and chain pipe cover.

Key Features

• 15% lighter than comparable all-stainless windlass
• New architecture with reduced parts
• Easier to service
• Highly reliable, light weight, high performance windlass • IP68 motor gearbox available on request

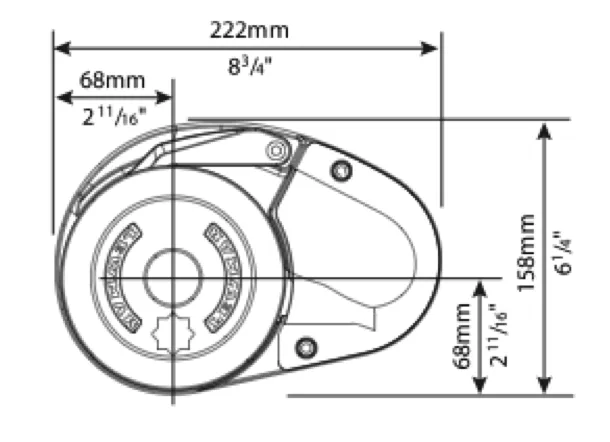

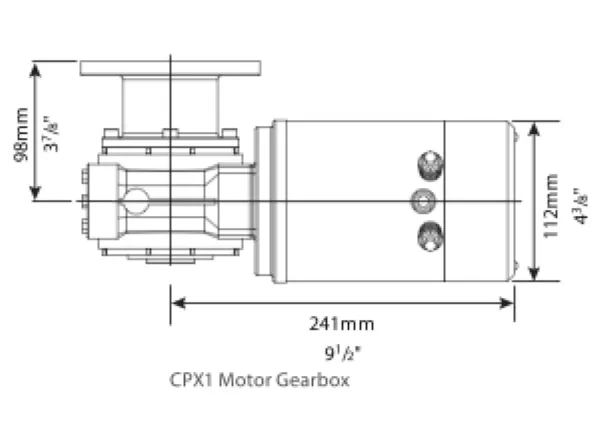

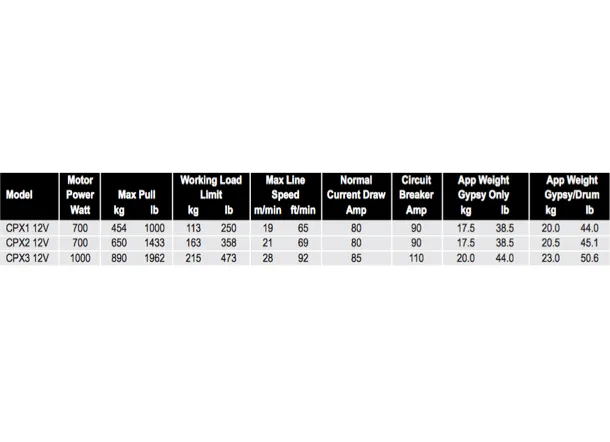

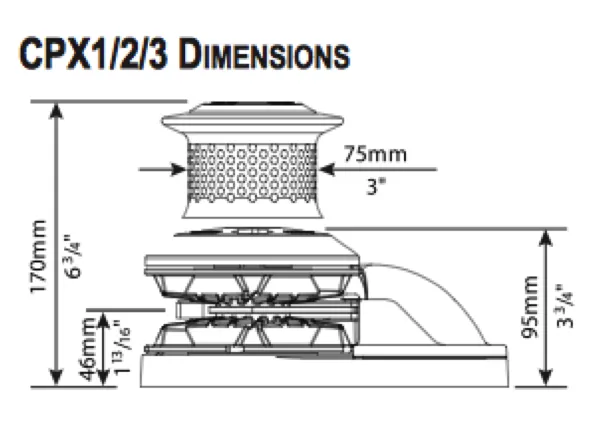

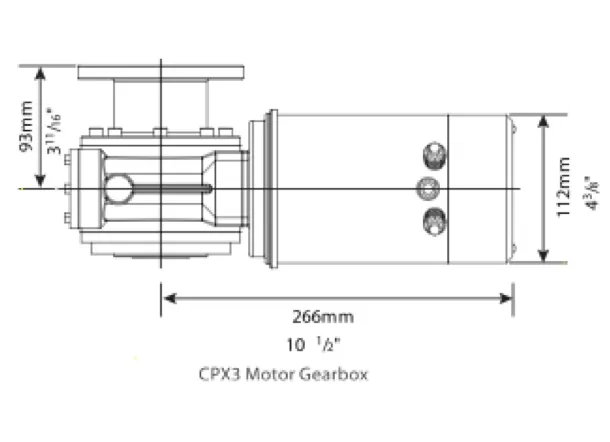

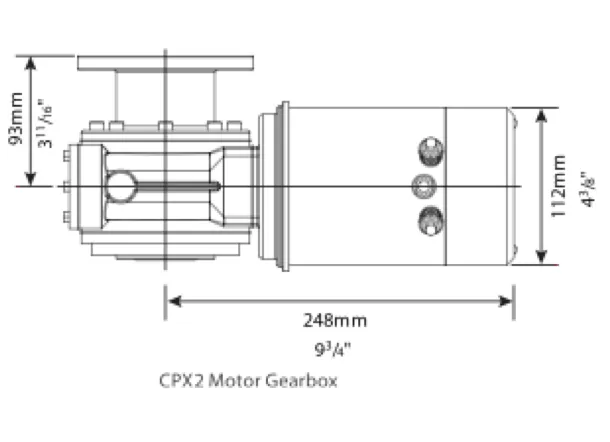

Specification, Dimensions & Weights

• See attached images

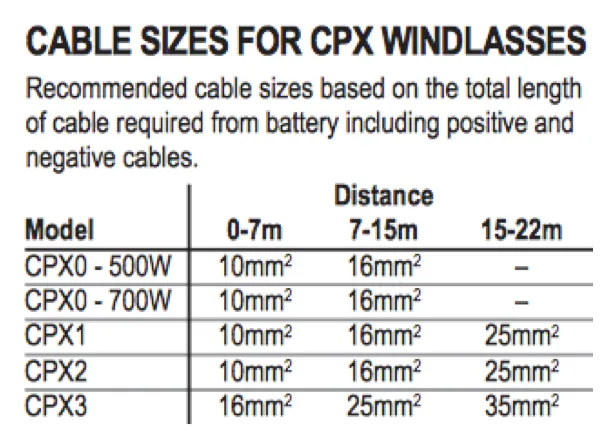

• Electrical Cable Size: See attached image
• Chain: 8mm DIN 766, 8mm ISO 4565, 5/16" G40
• Chain: 10mm DIN 766, Campbell 3/8" S4

Models

• Lewmar CPX1 Go Vertical Windlass Gypsy Only Kit 12V, 700W, 8mm Chain
• Lewmar CPX2 Go Vertical Windlass Gypsy Only Kit 12V, 700W, 8mm Chain
• Lewmar CPX3 Go Vertical Windlass Gypsy Only Kit 12V, 1000W, 8mm Chain
• Lewmar CPX3 Go Vertical Windlass Gypsy Only Kit 12V, 1000W, 10mm Chain
