As your need for power grows, so can your RV solar system by adding additional modules to your existing Solar Kits or even to the Weekender SW and Solar Elite charging system. Each Go Power! expansion kit includes a solar module, mounting hardware and expansion connections to quickly connect to the existing solar module on your RV roof. All Go Power! Solar Expansion kits are compatible with one another – using 80 watts or higher.
Go Power! Expansion kits feature solar connectors (multi-contact) for parallel wiring between our solar kits. This interlocking system allows for a simple installation that is reliable and safe.

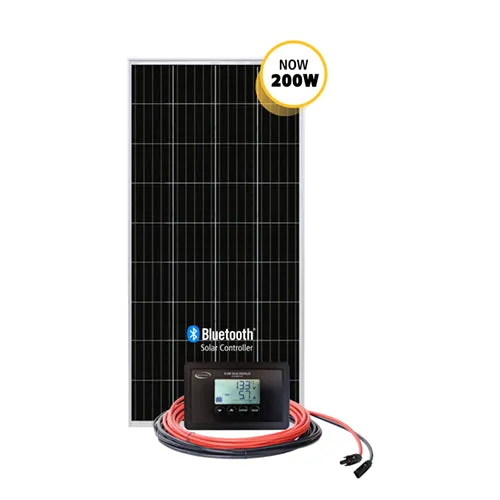

Included in the Overlander Solar Kit Expansion Kit:
- 2x 200W solar module (GP-PV-200M)
- 30 amp, lithium compatible, PWM, Dual Bank Bluetooth® solar controller (GP-SB-PWM-30BT)
- 25′ of solar output cable – RED (#10)
- 25′ of solar output cable – BLACK (#10)

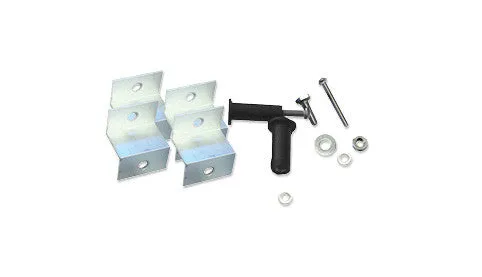

- Mounting hardware (1 x GP-MH-4-KB)
Perfect Balance of Power Needs and Price
Rugged, reliable, high-quality solar panels and components provide ample battery charging at an economical price.

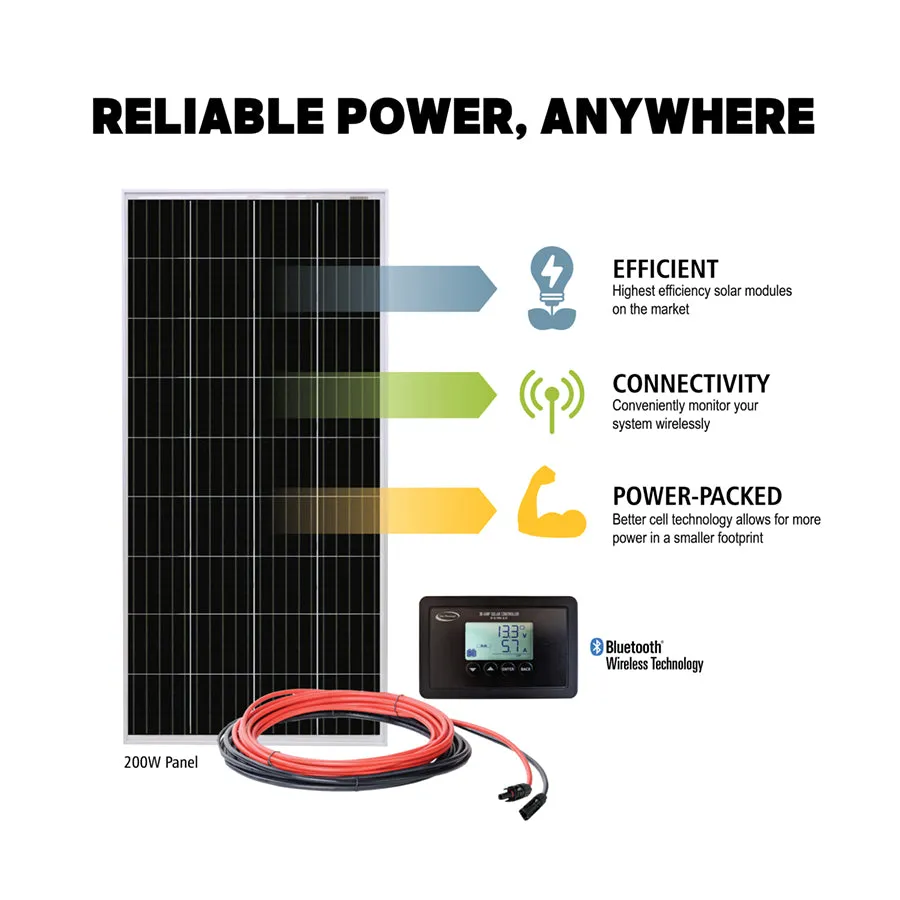

Advanced Solar Technology

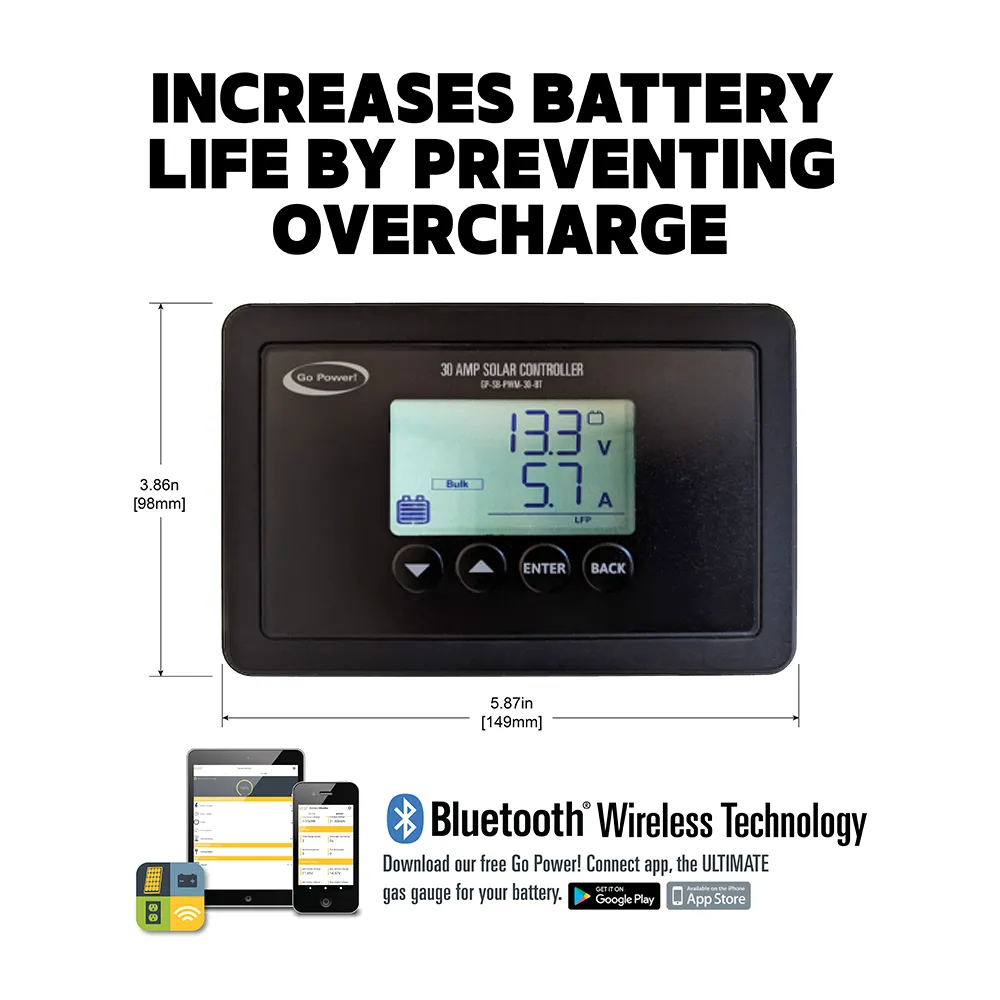

The Bluetooth®-enabled, GP-SB-PWM-30BT is a 12 volt flush-mounted, single-bank, photo-voltaic (PV) charge controller rated for a continuous solar current input of 30 amps. Easy to install with screw cover plate, and features improved Bluetooth® performance for remote system monitoring. Included in most popular kits. Available in Wired for Solar™ pre-wired RVs.
Ready-to-Install Kits Include Cables & Mounting Hardware
Everything you need to install and mount the panel is included, along with easy to follow, detailed installation instructions.
Adding More Solar with a Simple Connection
The Go Power! expansion kit features industry leading solar branch connectors (multi-contact) for serial wiring between our solar panels. This interlocking system allows for a simple installation that is reliable and safe.
The Advantage of Wired For Solar's Cable Entry Plate
The Cable Entry Plate helps ensure a water-tight entry point and quick-connect set-up between the rooftop solar panels and inside wiring. It features:
- Tough UV-Resistant Construction: designed to withstand sun and extreme temperatures, making it highly durable and long-lasting
- Water-Tight Seal: prevents interior water damage from rain and snow
- Vibration Proof Connectors: ensure cables stay tightly connected no matter how bumpy the road is

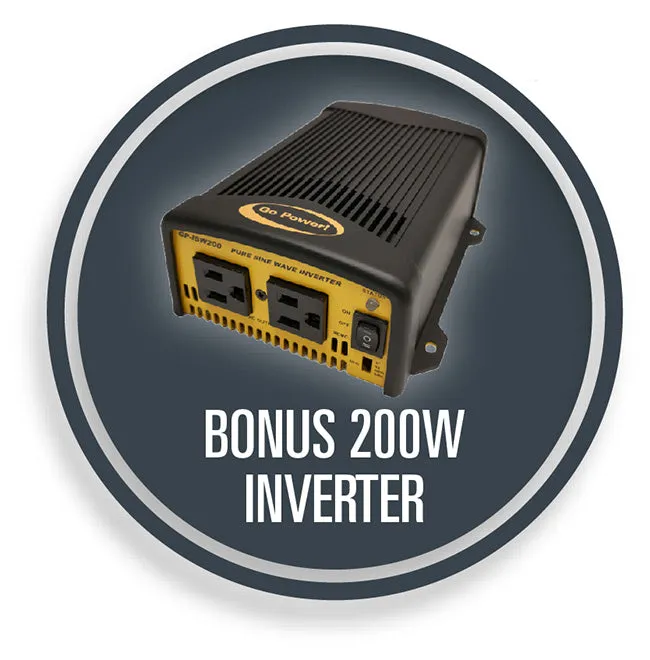

Exclusive Bonus: Go Power! 200 watt Inverter
Receive a bonus 200 watt modified sine wave inverter with every Overlander kit purchased here! Small, lightweight and portable, this inverter can power TVs and charge cell phones, tablets & laptops. Just plug into your vehicle’s 12V accessory socket and it is ready to go.
Specifications and Product Comparison
(80 watts) | (200 Watts) | (380 Watts) | |
|---|---|---|---|
| Recommended for: | 1 battery | 2 batteries | 3 batteries |
| Solar Panels | 1 | 1 | 2 |

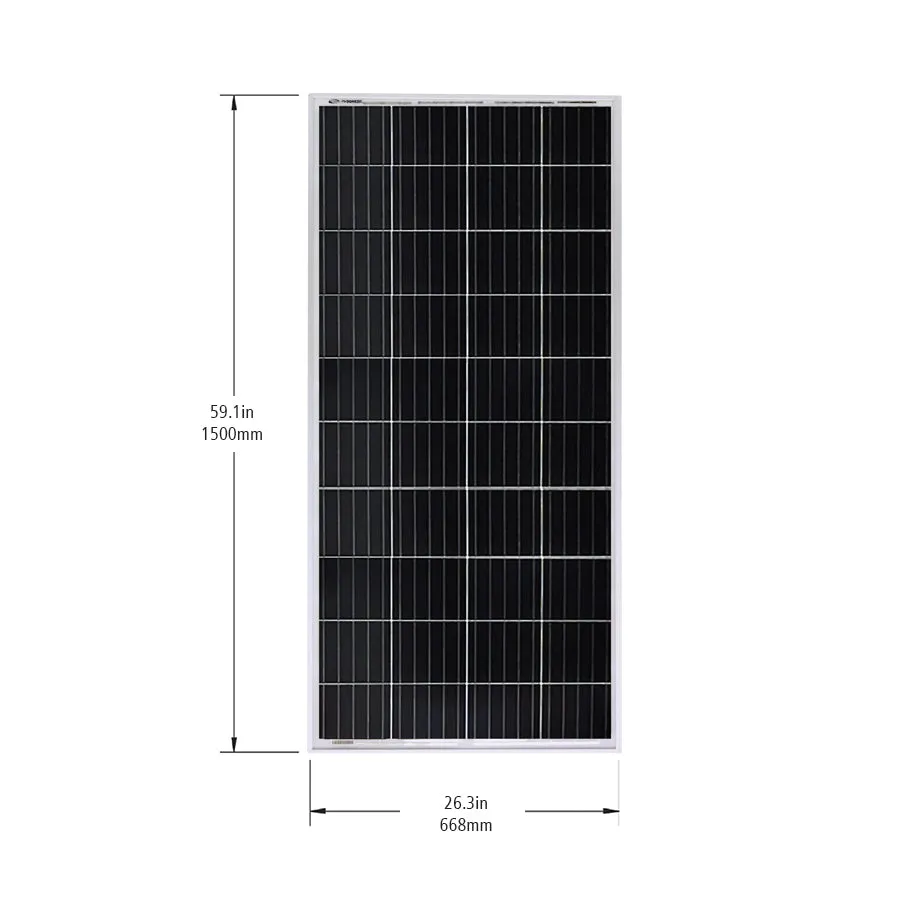

| Dimensions (each panel) | (in) 30.31 x 26.77 x 1.1 (mm) 760 x 670 x 30 | (in) 59.1 x 26.3 x 1.57 (mm) 1500 x 668 x 40 | |
| Weight (each panel) | 15.4 lbs / 7 kg | 32 lbs / 14.5 kg | |
| Solar cell type | Monocrystalline | ||
| Output power | 80 W | 200 W | 380 W |
| Rated current | 5.47 A | 9.3 A | 18.6 A |
| Rated DC voltage | 17.5 V | 18.42 V | 18.42 V |
| Open-circuit voltage | 21.0 V | 24.09 V | 24.09 V |
| Connectivity | Solar connectors | ||
| Solar controller | 10 A, PWM | 30 A, PWM | 30 A, PWM |
| Frame type | Clear anodized aluminum frame | ||
| Certifications | CE | ||
| Warranty | Solar Power Output: 25 years Charge Controller: 5 years | ||
