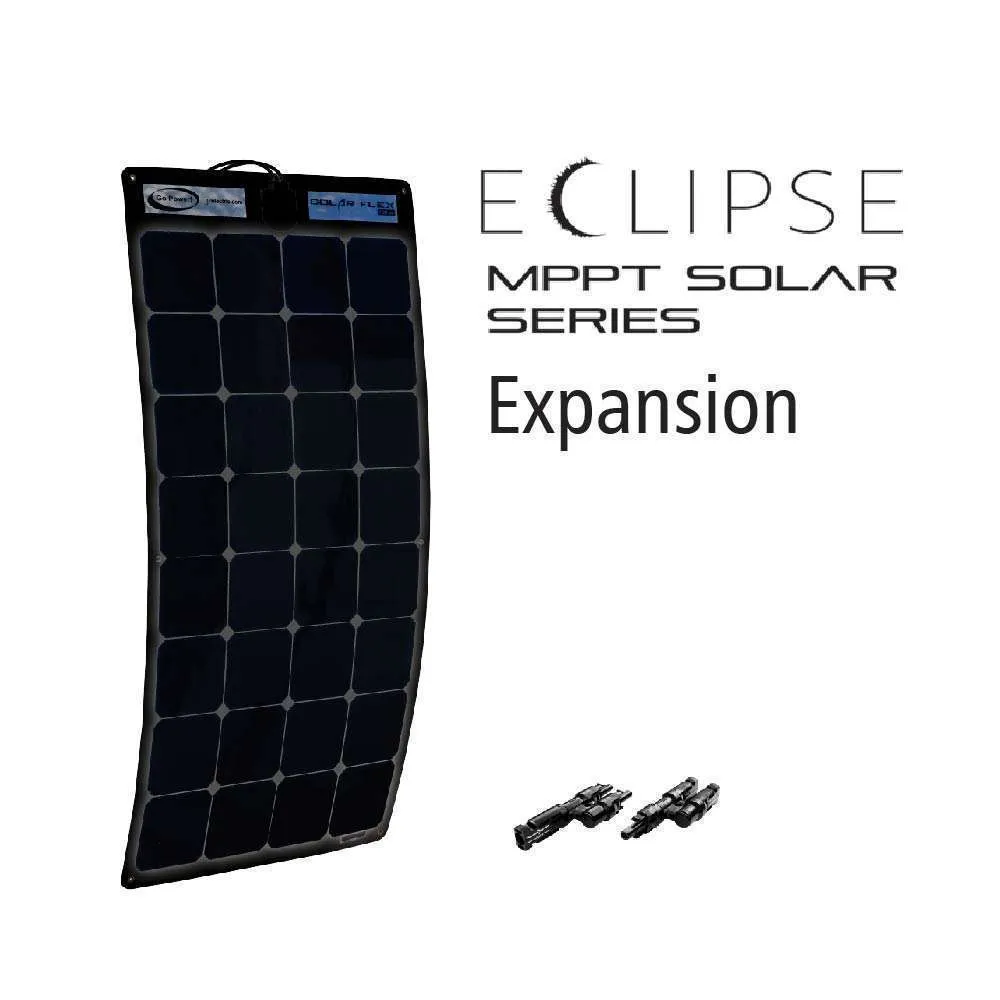

The SolarFlex™ Eclipse 190E Expansion adds another 190 watts of power to your full 190W Eclipse Solar Kit. As your need for power grows, so can your RV solar system by adding additional modules to your existing SolarFlex™ Eclipse Solar Kit.
Each Go Power! expansion kit includes a solar module, mounting hardware and expansion connections to quickly connect to the existing solar module on your RV roof. All Go Power! Solar Expansion kits are compatible with one another - 100 watts or higher.

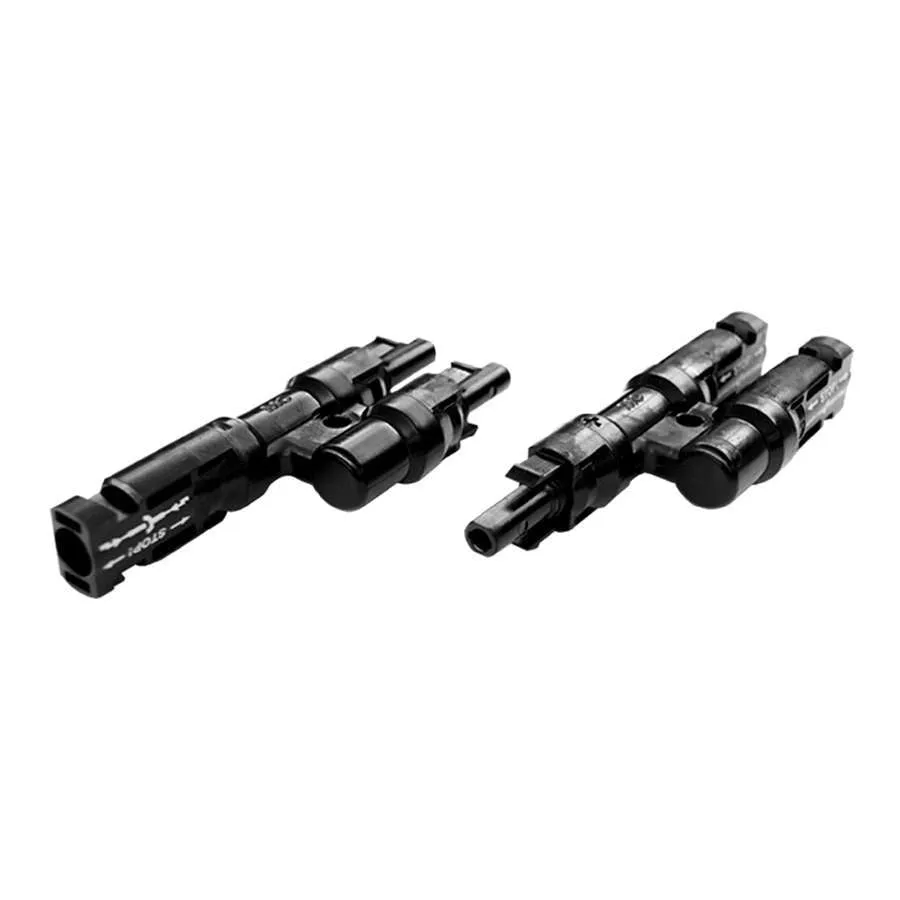

Go Power! Expansion kits feature (multi-contact) for parallel wiring between our solar kits. This interlocking system allows for a simple installation that is reliable and safe.
Kit Features:
- Expandable. Compatible with any
- Can be affixed with adhesive or screws
- Durable ETFE top sheet
- Measures less than 1/8” (3 mm) thick
- Modules weigh over 80% less than
- 5-year power output warranty
Please note that any sealant/adhesive required will depend on roof membrane material and is not included in the Solar Flex kit. Use an appropriate sealant as recommended by your RV dealer or manufacturer.
Kit Includes:
- Black Solar Flex™ 190 watt, 9.89 amp solar module

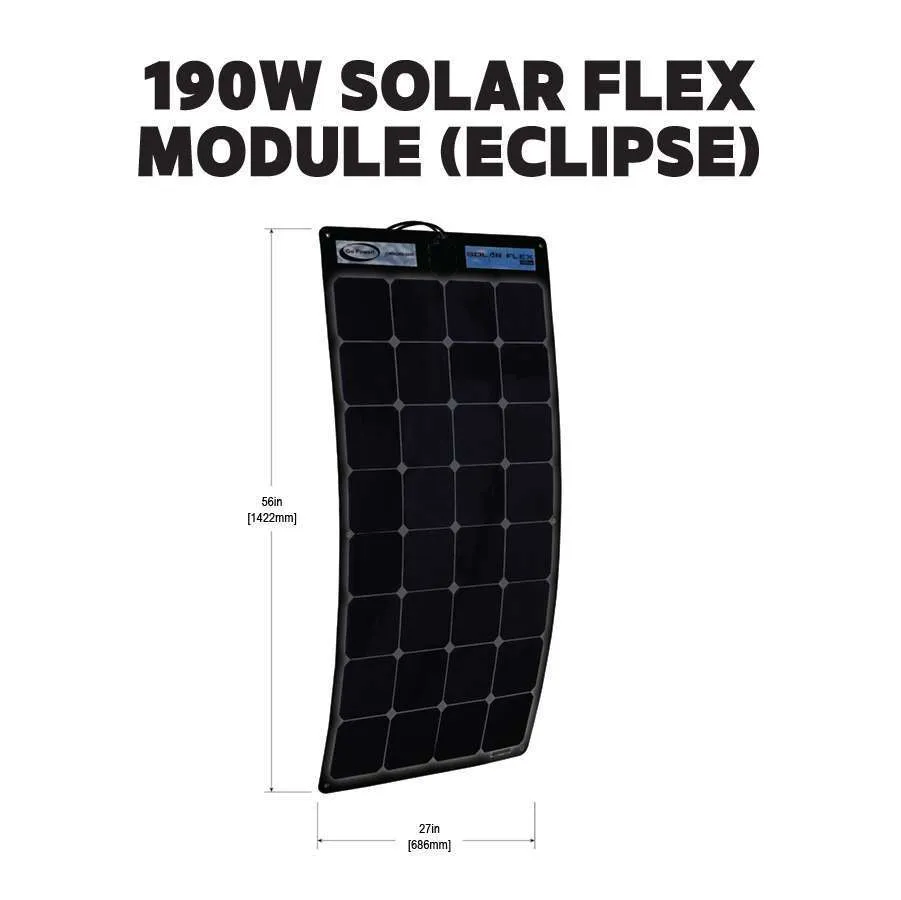

- Panel dimensions: 55.98 x 27.2 x 0.1 in
About Solar Flex™ Panels
The Go Power! Solar Flex™ panel is aerodynamic and DURABLE—a low-profile and bendable solar battery charger for RVs, boats, , long-haul trailers, and sleeper cabs. This solar panel conforms to almost any surface and is designed to provide a powerful charging solution for batteries. The high-efficiency monocrystalline cells produce more power per square foot than any other flexible panel on the market.
An impermeable lamination coats the entire Solar Flex™ module, allowing it to contour and flex against curved surfaces, eliminating any need for custom mounts. The panel can be affixed by adhesive or screws, and grommets are provided for ease of installation. The thin, lightweight module can also be, making this a truly versatile solar module.

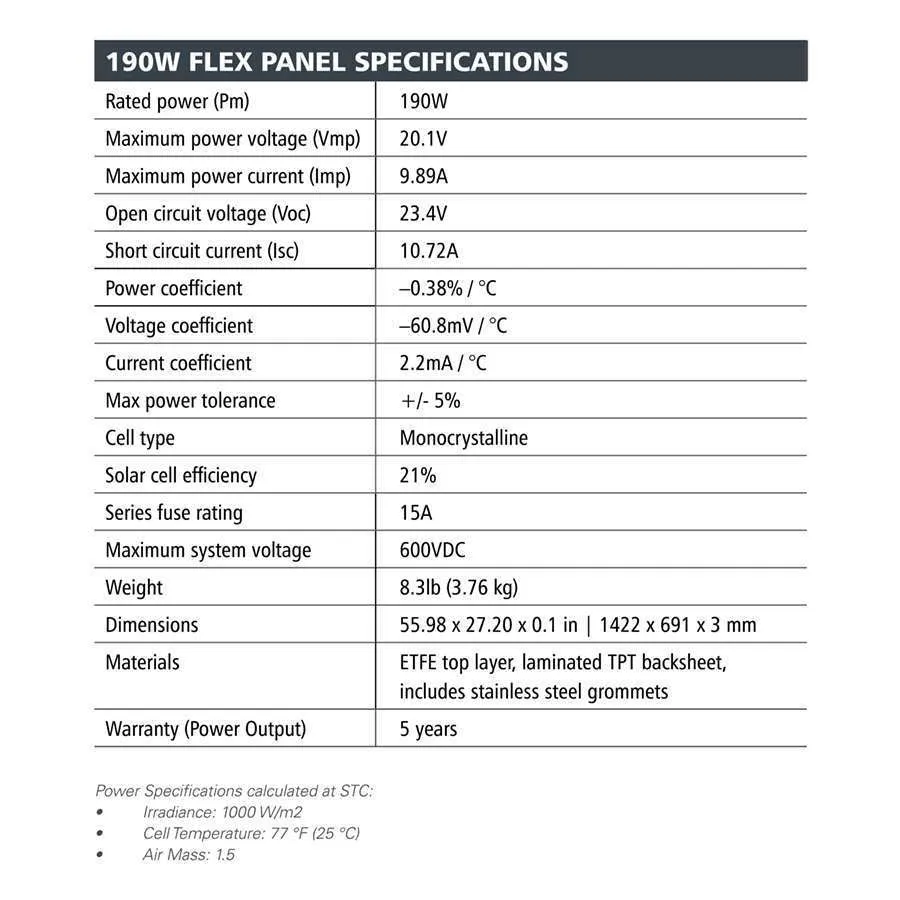

SPECIFICATIONS
Solar Module Specs
| Solar cell type | Monocrystalline |
Output power | 190 W |
Rated current | 9.89 A |
Rated DC voltage | 20.1 V |
| Open-circuit voltage | 23.4 V |
| Module efficiency | 21% |
| Connectivity | Solar Branch Connectors |
| Frame type / Materials | ETFE Top Layer with Laminated TPT Back Sheet |
| Certifications | CE |
| Dimensions | 55.98 x 27.20 x 0.1 in | 1422 x 691 x 3 mm |
Weight | 8.3 lbs / 3.76 kg |
Warranty | 5 years power output (module) |
